MAIN FEATURES

  • Power range: from 0.75kW up to 355kW as single module, up to 1.65MW with parallel connection (Heavy Duty)
  • Power Supply :
    1. 3 x 380...480Vac, 50/60Hz (-4 models )
    2. 3 x 500…690Vac, 50/60Hz (-6 models )
    3. 450 ... 750 Vdc (-DC-4 models)
    4. 600 ... 1,120 Vdc (-DC -6 models)

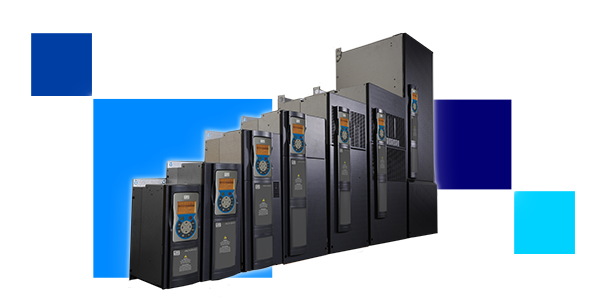

  • 7 different mechanical sizes
  • Field Oriented Control (Closed loop or sensorless), V/f Control (Closed loop or open loop)
  • Asynchronous and synchronous motors
  • HMI integrated as standard
  • Broad range of option cards (encoders, I/Os, Fieldbus)
  • Fast Link fiber optic communication for drive-to-drive synchronization
  • Safe Torque Off (STO) card integrated as option
  • SW applications dedicated to specific industries
  • Certifications: CE. UL, cUL



APPLICATION SEGMENT

COMMUNICATION

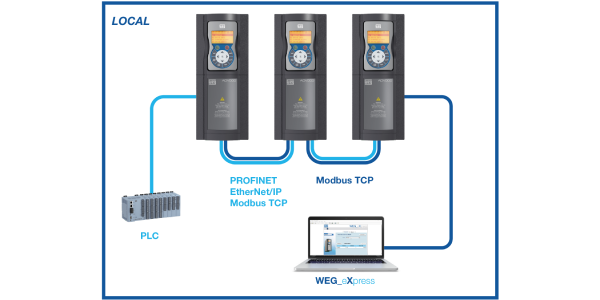

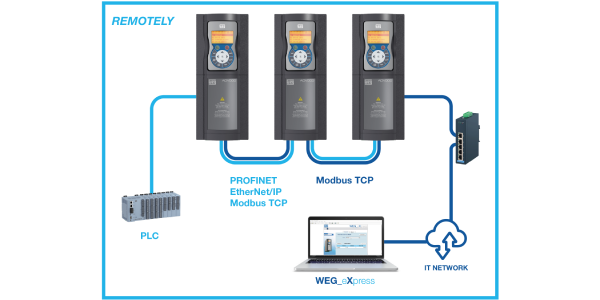

The PROFINET and Ethernet/IP communication boards are powerful and versatile, helping network designers to face the challenges of the modern OT/IT integration. Adding a ModBus TCP/IP socket, they allow one or more drives to be connected to the configuration software on PC, locally or remotely, without disrupting the active communication with the controller.

OPTIONAL BOARDS

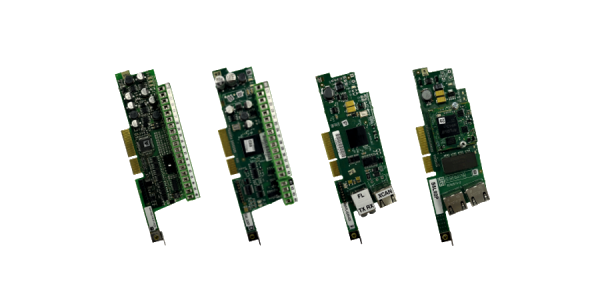

The drive’s control hardware accommodates up to three slots for the installation of optional boards:

  • Encoder boards (incremental, Sin/Cos, absolute)
  • I/O Expansions (digital and analog)
  • FastLink drive-to-drive synchronous communication
  • Industrial Fieldbus

If needed by the application, up to three encoder boards can be installed in the same drive.

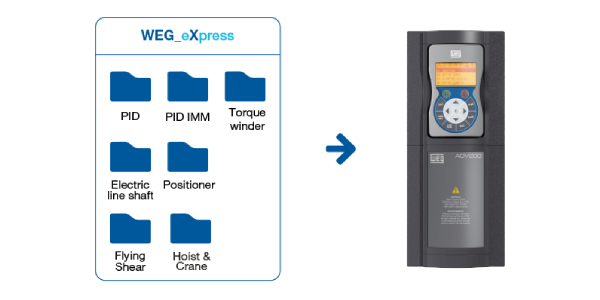

SOFTWARE APPLICATIONS

ADV200 supports SW applications solving complex technological tasks in high-demanding industrial sectors such as:

  • Hoist & Crane
  • Torque winder
  • Electric line shaft
  • Positioner
  • PID IMM (Injection Moulding)
  • Flying Shear
  • PID

ADVANCED HMI

  • 4-line display with 21 characters
  • Clear alphanumeric text
  • 10 languages included
  • Complete information on any parameter
  • Custom Key to view the last 10 parameterschanged
  • DISP key for quick display of operating parameters
  • Upload - download and storage of 5 complete parameter sets from the drive
  • Remotable up to 10 meters



WEG_eXpress

WEG_eXpress is the software configuration tool for the ADV200 drives family.

The software can display the drive parameters either as a list or in diagram form.

It includes wizards for a quick and intuitive configuration as well as graphical tools for supporting and simplifying the commissioning of the drives and the maintenance operations.

It is available in 5 languages.

MULTIWINDING OPERATION

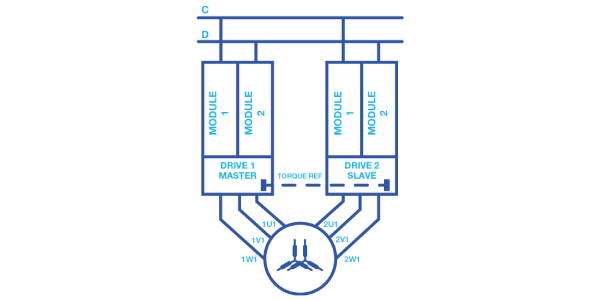

ADV200 is capable of controlling motors with multiple stator windings, extending the range of manageable motor power. For instance, in the case of a dual-winding motor, employing two separate drives—one for each winding—enables the maximum power capacity to be doubled, reaching up to 3.2 MW in HD. The presence of a motor encoder is mandatory in this case.



YOUTUBE CHANNEL

To learn more about the ADV200, click HERE and watch the dedicated tutorials on our YouTube channel.
The playlist is constantly updated!
